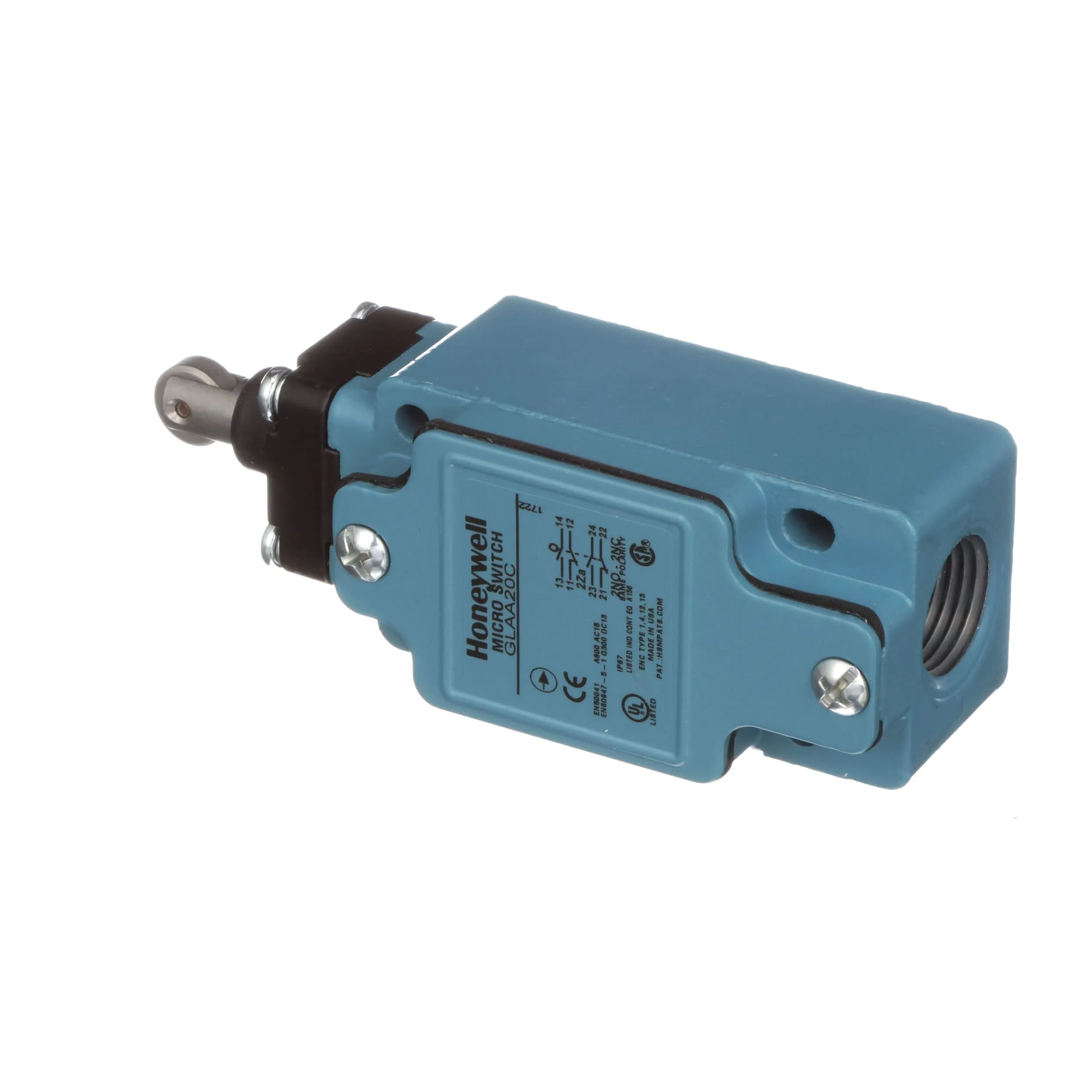

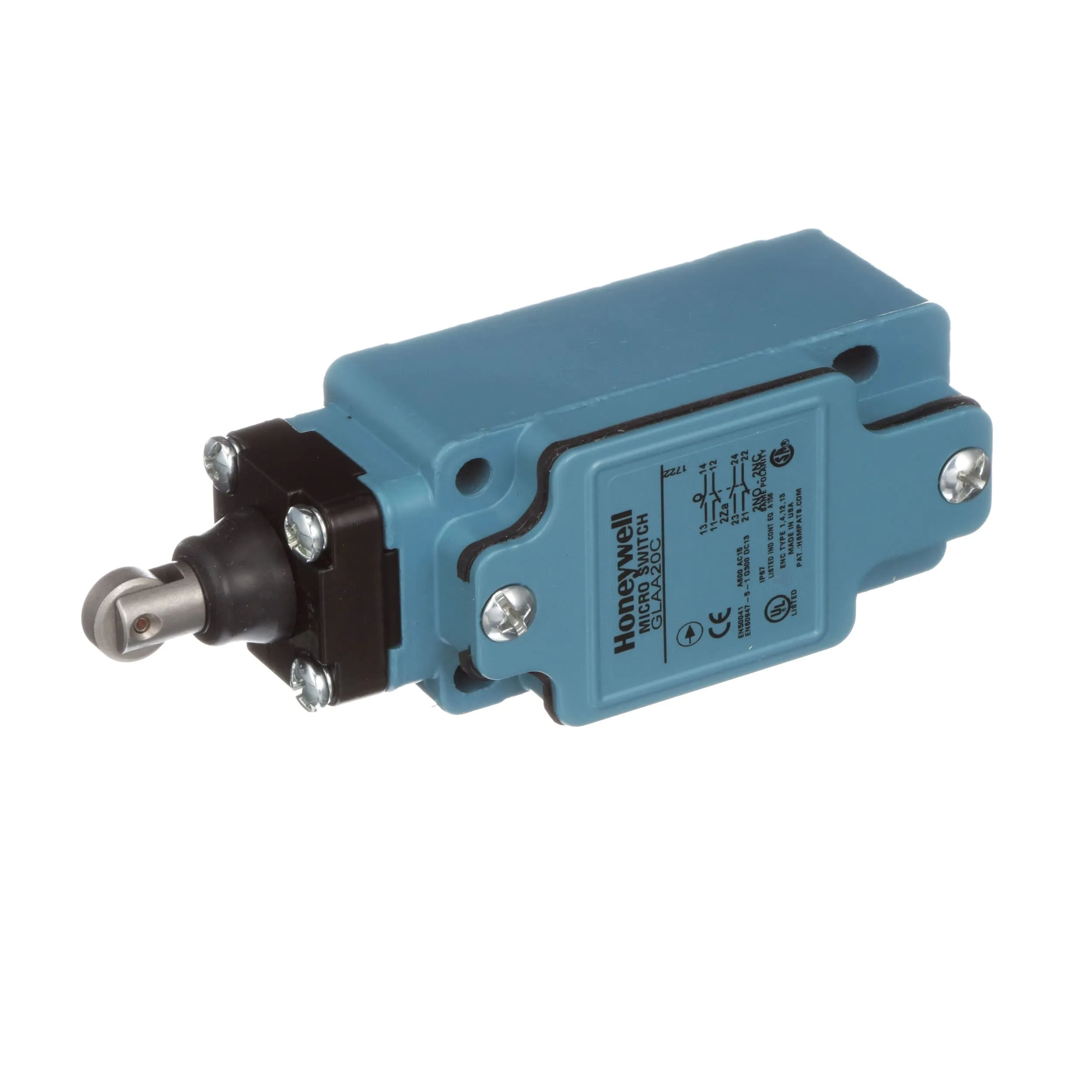

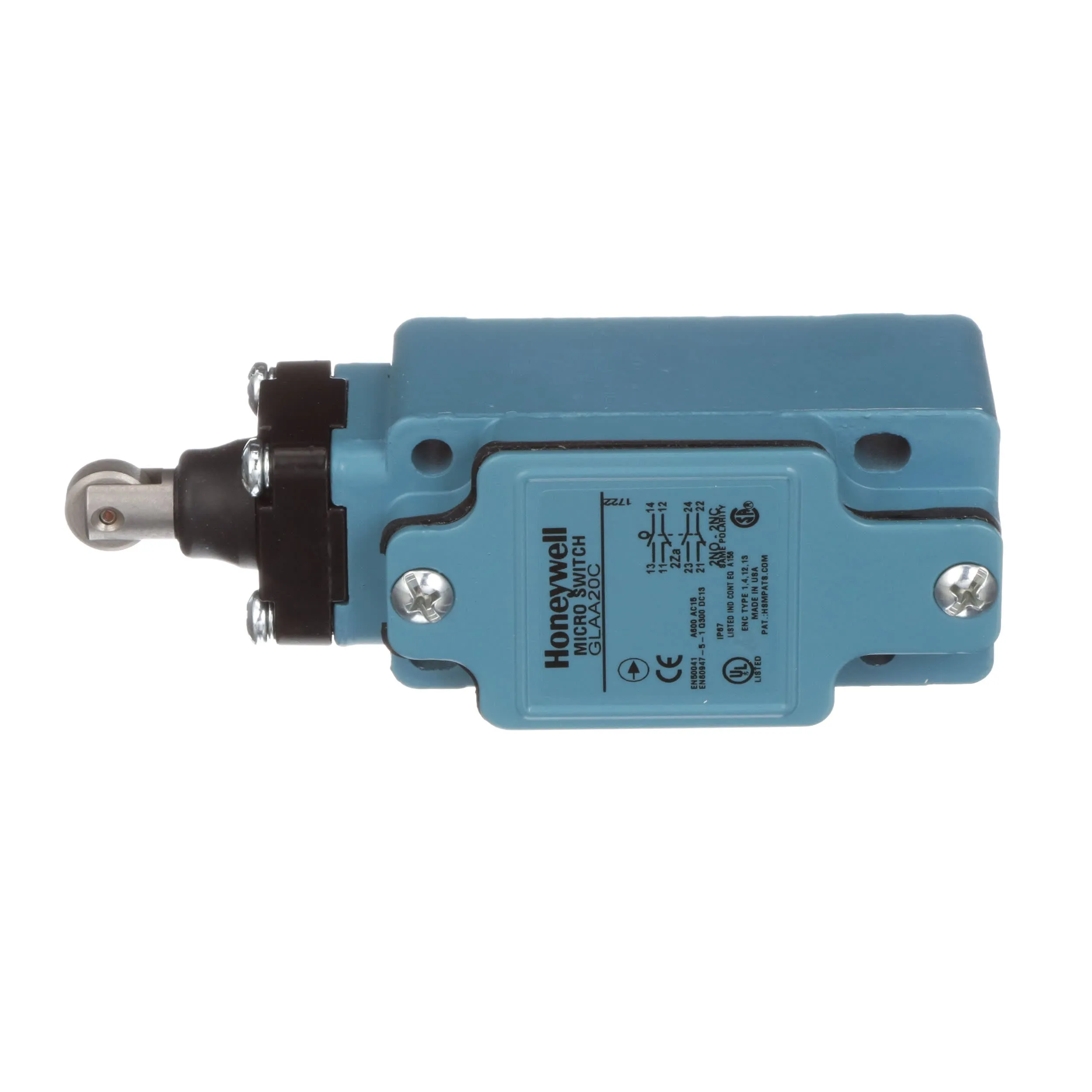

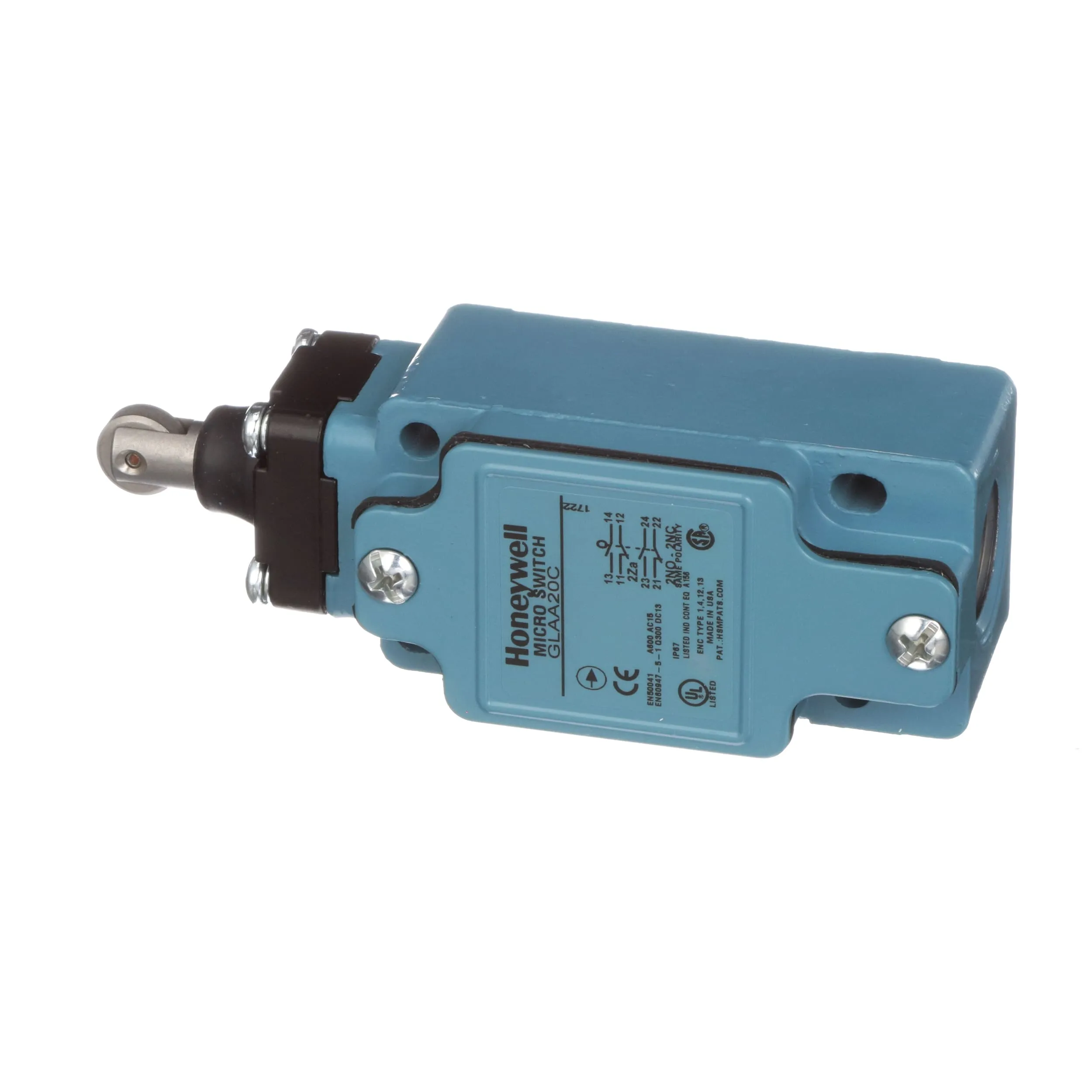

Name: Honeywell GLAA20C
SKU: 1708998

Product Details ＋

Product Attribute	Attribute Value
Actuator Type	Top Roller Plunger
Contact Form	DPDT
Current Rating	10 A
Family Name	GLS Family
Head Type	Plunger
IP Rating	IP67
Mounting Hole Size	0.117 "
Number of Poles	2
Number of Positions	2
Operating Temperature	-25 to 85 °C
Series
Standards	UL Listed, CSA Certified, CE Marked
Termination	Screws
Type	Limit
Voltage Rating	600 VAC

Overview

Honeywell GLA Series - MICRO SWITCH Global Limit Switches:

Honeywell’s MICRO SWITCH™ GLA Limit Switch Series is designed to global EN50041 standards and well suited for worldwide applications. The modular design (heads/actuators, bodies, and contact blocks) of the limit switch allows for rapid response to meet customer applications. The rugged die-cast metal housing of the switch is ideal for indoor and outdoor applications where a degree of IP or NEMA enclosure sealing is required. Normally closed snap-action contacts and normally closed slow-action contacts are positive opening

Features:

Designed to EN50041 standard, 30 mm x 60 mm mounting

Available as a standard body or plug-in body with same footprint

Wide range of actuator heads and levers

Side rotary switches factory set for CW and CCW actuation; field adjustable for CW only or CCW only

Certified for global applications; UL/CSA (Americas/Canada), CE (Europe), CCC (Asia-Pacific)

Conforms to IEC/EN 60947-5-1, EN45545-2 (GLA/GLF Series)

Sealed to IP67 and NEMA/UL 1, 4, 12, and 13

Operating temperatures as low as -40 °C to 85 °C [-40 °F to 185 °F]

Multiple connectivity options to meet most applications: four different threaded conduits, micro-change connectors, minichange connectors, Deutsch style 4-pin connector

One or two LED indicators available in switch body

Single pole double throw, two pole single throw contact blocks (1NC/1NO, 2NC, 2NO) are galvanically (electrically) isolated (Zb) and designed with bifurcated contacts

Two pole double throw contact block (2NC/2NO) has each pole galvanically (electrically) isolated (Zb)

Normally closed contacts are positive opening , except center neutral style

Contact blocks are available as snap action or slow action

Analog output available with side rotary actuator

Mechanical life up to 15 million operations

Applications:

Aerial lifts, boom lifts

Automotive assembly lines and machining centers

Agriculture equipment

Conveyors

Doors and apertures

Material handling

Machine tools
