Product Description

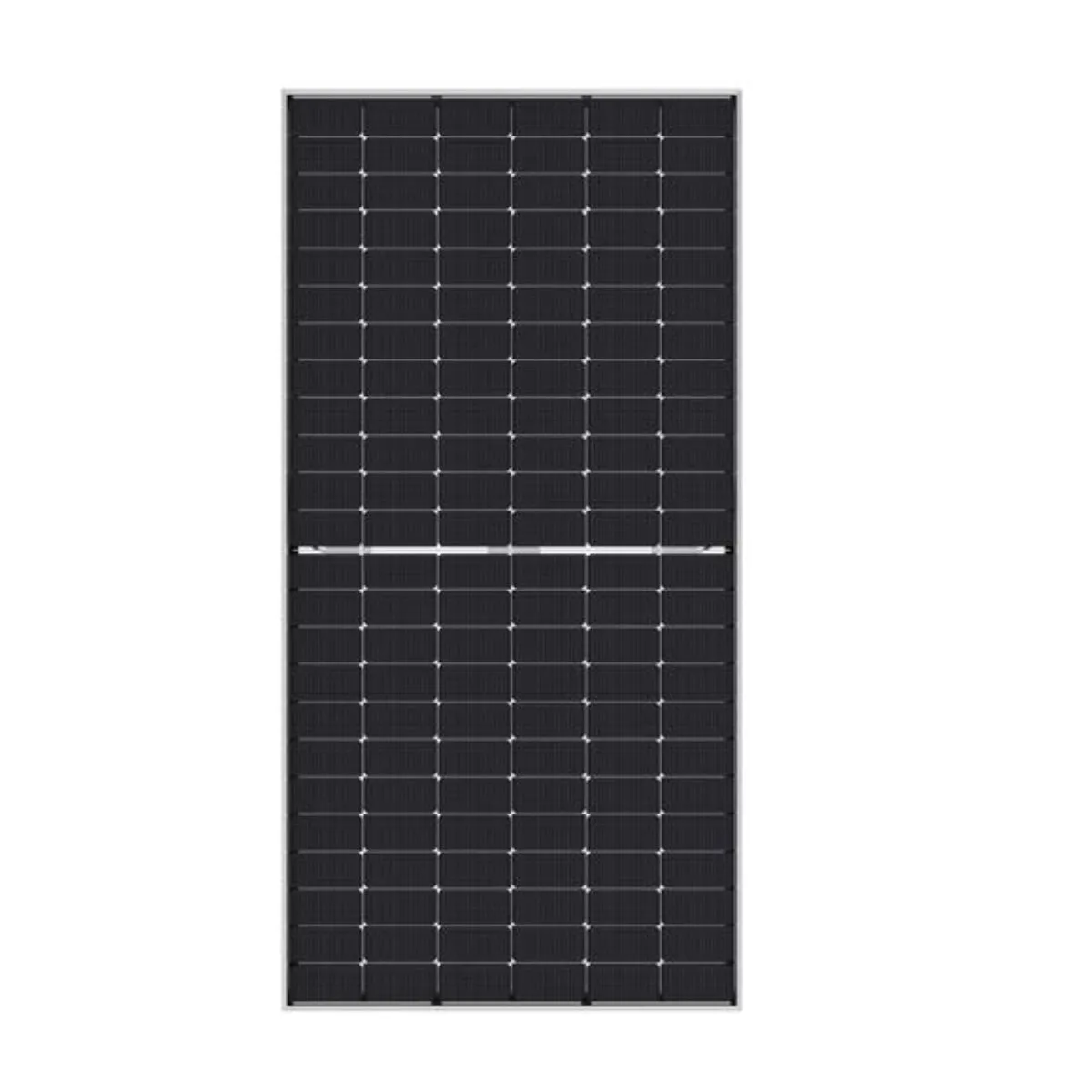

As an industry expert, rely on facts when describing the Jinko 550W Tiger Pro Bifacial Solar Panel. With its bifacial feature, this solar panel can capture sunlight from both sides, increasing energy output by up to 30%. Maximize your solar energy production with this professional and efficient panel.

Positive power tolerance of 0~ 3%

Certifications

• IEC61215(2016), IEC61730(2016)
• ISO9001:2015: Quality Management System
• ISO14001:2015: Environment Management System
• ISO45001:2018 Occupational health and safety management systems

Key Features

• Multi Busbar Technology - Better light trapping and current collection to improve module power output and reliability.
• PID Resistance - Excellent Anti-PID performance guarantee viaoptimized mass-production process and materials control
• Higher Power Output - Module power increases 5-25% generally, bringingsignificantly lower LCOE and higher IRR.
• Longer Life-time Power Yield - 0.45% annual power degradation and 30 yearlinear power warranty.
• Enhanced Mechanical Load - Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

Linear Performance Warranty

• 12 Year Product Warranty
• 30 Year Linear Power Warranty
• 0.45% Annual Degradation Over 30 years

Mechanical Data

• Cell Type: P type Mono-crystalline
• No. of Cells: 144 (6x24)
• Dimensions: 2278 ˣ 1134 ˣ 30 mm
• Weight: 31kg
• Front Glass: 2.0 mm Anti-Reflection Coating
• Back Glass: 2.0mm, Heat Strengthened Glass
• Frame: Anodized Aluminium Alloy,
• J-Box: IP68
• Output Cables: TUV 1×4.0mm - ( ): 400mm , (-): 200mm or Customized Length

Specifications - STC

• Module Type - JKM550M-72HL4-BDVP
• Maximum Power (Pmax) - 550Wp
• Maximum Power Voltage (Vmp) - 41.51V
• Maximum Power Current (Imp) - 13.25A
• Open-circuit Voltage (Voc) - 50.11V
• Short-circuit Current (Isc) - 14.01A
• Module Efficiency STC (%) - 21.29%
• Operating Temperature(℃) - -40℃~ 85℃
• Maximum system voltage - 1500VDC (IEC)
• Maximum series fuse rating - 30A
• Power tolerance - 0~ 3%
• Temperature coefficients of Pmax - -0.35%/℃
• Temperature coefficients of Voc - -0.28%/℃
• Temperature coefficients of Isc - 0.048%/℃
• Nominal operating cell temperature (NOCT) - 45±2℃
• Refer. Bifacial Factor - 70±5%

Specifications - NOCT

• Maximum Power (Pmax) - 409Wp
• Maximum Power Voltage (Vmp) - 38.421V
• Maximum Power Current (Imp) - 10.65A
• Open-circuit Voltage (Voc) - 47.30V
• Short-circuit Current (Isc) - 11.32A
• STC: Irradiance 1000W/m2
• NOCT: Irradiance 800W/m2
• Cell Temperature 25°C
• Ambient Temperature 20°C
• Wind Speed 1m/s

Please note that panel dimensions and specifications are subject to change. Please double check with us that they are correct at time of purchase.
