DETAILS

• Platform
• Model Name

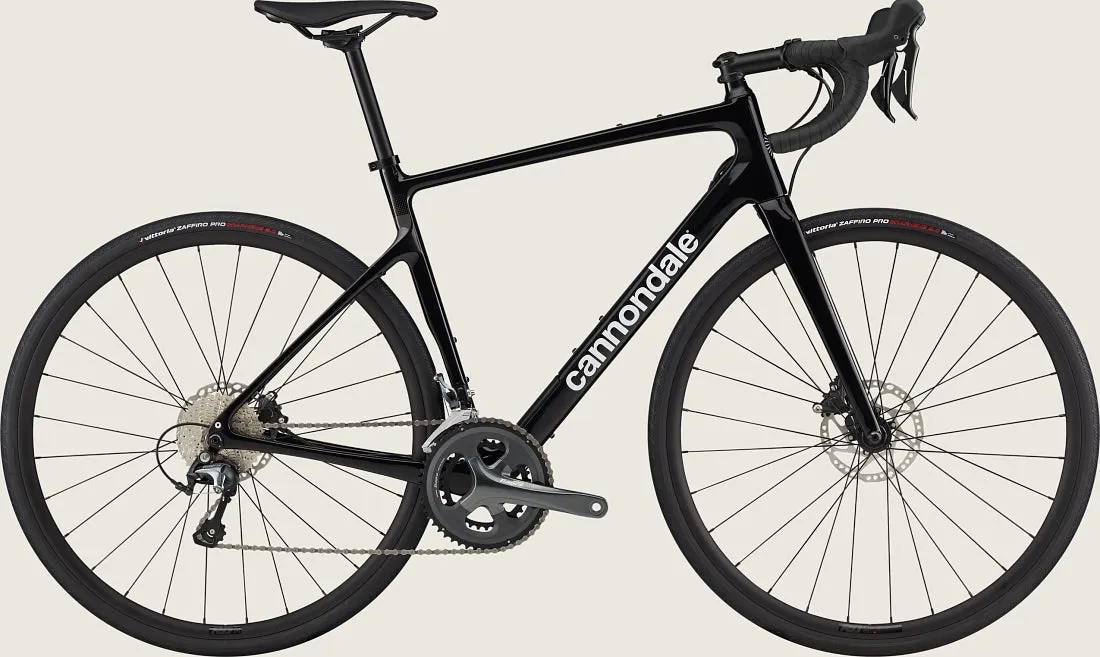

  Synapse Carbon 4
• Model Code

  C12402U

FRAMESET

• Frame

  Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru-axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
• Fork

  Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts
• Headset

  Synapse Sealed Bearing, integrated, 1-1/4"-1-1/8"

DRIVETRAIN

• Rear Derailleur

  Shimano Tiagra GS
• Front Derailleur

  Shimano Tiagra, braze-on
• Shifters

  Shimano Tiagra hydraulic disc, 10-speed
• Chain

  Shimano HG54, 10-speed
• Crank

  Shimano Tiagra, BSA, 50/34
• Rear Cogs

  Shimano Tiagra, 11-34, 10-speed
• Bottom Bracket

  Shimano BSA

BRAKES

• Brakes

  Shimano Tiagra hydraulic disc, 160/160mm RT64 rotors
• Brake Levers

  Shimano Tiagra hydraulic

WHEELS

• Rims

  RD 3.1, 28h, 21mm inner width
• Spokes

  Stainless Steel, 14g
• Tires

  Vittoria Zaffiro Pro Reflective, 700x30c
• Tire Size

  30
• Wheel Size

  700c
• Hubs

  (F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
• Front Tire

  Vittoria Zaffiro Pro Reflective, 700x30c
• Rear Tire

  Vittoria Zaffiro Pro Reflective, 700x30c

COMPONENTS

• Handlebar

  Cannondale 3, 6061 Alloy, Compact
• Stem

  Cannondale 3, 6061 Alloy, 31.8, 7°
• Grips

  Fabric Knurl Bar Tape
• Saddle

  Fizik Aliante Delta, S-alloy rails
• Seatpost

  Cannondale 3, 6061 Alloy, 27.2x350mm (48-56), 400mm (58-61)
