Highlights

• Lightweight aluminum step-thru frame
• Shimano Altus 9-speed shifting / hydraulic disc brakes
• Bosch Active Line 250W drive-unit / 400Wh battery / Range: up to up to 65 mi

• Specs

  DETAILS

  • Platform
  • Model Name

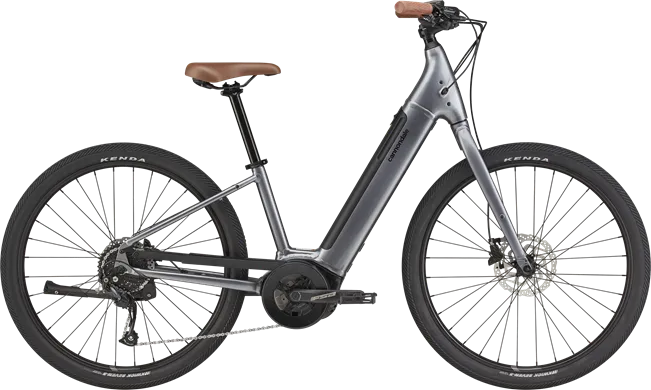

    Adventure Neo 4
  • Model Code

    C68401U

  FRAMESET

  • Frame

    SmartForm C3 Alloy step-thru frame, removable downtube battery, fully internal cable routing, post mount disc, dual water bottle headtube mount
  • Fork

    SmartForm C3 Alloy blades, 1-1/8" steerer, post mount disc, mid-blade rack/fender mounts, crown accessory mount, 45mm offset
  • Headset

    Semi-Integrated, 1-1/8"

  E-SYSTEM

  • Drive Unit

    Bosch Active Line
  • Battery

    Bosch PowerTube, 400Wh
  • Charger

    Bosch 2A
  • Display

    Bosch Purion

  DRIVETRAIN

  • Rear Derailleur

    microSHIFT Marvo, 9-speed
  • Shifters

    microSHIFT Marvo XPress M859, trigger style, 9-speed
  • Chain

    KMC Z9, 9-speed
  • Crank

    FSA Bosch E-Bike, 38T
  • Rear Cogs

    microSHIFT, 11-36, 9-speed

  BRAKES

  • Brakes

    Tektro M275 hydraulic disc, 180/160mm rotors
  • Brake Levers

    Tektro hydraulic disc

  WHEELS

  • Rims

    Cannondale 2, double wall
  • Spokes

    Stainless Steel, 14g
  • Tires

    Kenda Kwick Seven.5, 27.5x2.20"
  • Tire Size

    56
  • Wheel Size

    650b
  • Hubs

    (F) Formula DC-1420, QR / (R) Formula DC-1422, QR
  • Front Tire

    Kenda Kwick Seven.5, 27.5x2.20"
  • Rear Tire

    Kenda Kwick Seven.5, 27.5x2.20"

  COMPONENTS

  • Handlebar

    Cannondale E-Series Alloy, ergo backsweep, 680mm
  • Stem

    Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
  • Grips

    Cannondale Comfort
  • Saddle

    Cannondale Ergo Comfort
  • Seatpost

    Cannondale 4, 6061 Alloy, 31.6x350mm

  CONNECTIVITY

  • Wheel Sensor

    Cannondale Wheel Sensor

  EXTRA

  • Extra 1

    Kickstand

  PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
